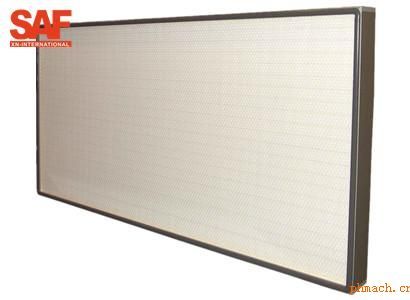

超高效空氣過濾器
Super efficient air filter
特點Features
●效率超高、阻力高
●重量輕、安裝方便
●適用于電子、制藥、食品等百級及百級以上的空氣凈化末端
●Efficiency high, high resistance
●Light weight, convenient installation
●Suitable for electronic, pharmaceutical, food and other 100 level and 100 + air purification ends
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金外框
●External frane：Aluminum alloy frame
●密封物：聚胺脂膠
●Sealant：Gel-glue
●分隔物：熱熔膠
●Filter media：Hot-melt
●密封條：醋酸乙酯
●Gasket：EVA
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用*高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號
model |
外形尺寸
Outside dimensions
(mm) |
額定風量
Rated air flow
(m3/h) |
初阻力
Imitial resistance
(Pa) |
效率
Efficiency |
容塵量
Dust capacity
(g) |
|
XN-CGXW-5J |
610×610×50 |
500 |
≤250~280 |
U15、U16 |
450 |
|
XN-CGXW-7J1 |
915×610×50 |
700 |
≤250~280 |
U15、U16 |
680 |
|
XN-CGXW-10J |
1220×610×50 |
1000 |
≤250~280 |
U15、U16 |
900 |
|
XN-CGXW-7J |
610×610×69 |
700 |
≤250~280 |
U15、U16 |
560 |
|
XN-CGXW-10J |
915×610×69 |
1000 |
≤250~280 |
U15、U16 |
840 |
|
XN-CGXW-14J |
1220×610×69 |
1400 |
≤250~280 |
U15、U16 |
1120 |
|
XN-CGXW-8J |
610×610×80 |
800 |
≤250~280 |
U15、U16 |
650 |
|
XN-CGXW-9J |
610×610×90 |
900 |
≤250~280 |
U15、U16 |
750 |
|
XN-CGXW-11J |
610×610×100 |
1100 |
≤250~280 |
U15、U16 |
850 |
|
XN-CGXW-12J |
1170×570×69 |
1200 |
≤250~280 |
U15、U16 |
1000 |
|
XN-CGXW-14J |
1170×570×80 |
1400 |
≤250~280 |
U15、U16 |
1250 |
|
XN-CGXW-16J |
1220×610×80 |
1600 |
≤250~280 |
U15、U16 |
1300 |
|
XN-CGXW-18J |
1220×610×90 |
1800 |
≤250~280 |
U15、U16 |
1500 |
| |
|
|
|
|
|
|
|
|
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters
