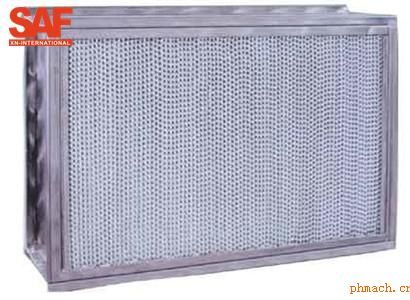

耐400°高溫高效空氣過濾器
High temperature resistant 400℃hepa air filter
特點Features
●阻力低、容塵量大
●耐400°高溫，性能穩定，不裂開，不粉化
●主要用于制藥企業,西林、粉針玻璃容器高溫消毒潔凈烤箱設備.
●Low resistance,high-dust capacity
●The highest tem.400℃,strong performance,no pulverization and crack etc.
●Be main used in pharmaceutical industry,high temperature sterilization oven purify equipment of amoxicillin power、power needle glass capsule
耐400°高溫高效空氣過濾器構成材料及運行條件Material and operation conditions
●框材：304/316不銹鋼外框
●External frame：304/316 stainless steel
●密封物：耐400°以上高溫無機膠合成物
●Sealant：high temperatureresistant (>400℃)inorganic bonding compounds
●密封條：耐400°以上高溫密封氈
●Gasket:High temperature resistant 400℃sealing mat
●分隔物：鋁箔
●Seperator：Aluminum foil
●濾料：耐400°高溫玻纖濾紙
●Filter media:high temperature resistant 400℃fiberglass media
●使用*高溫度：350~400℃
●Using the highest temperature：350-400℃
耐400°高溫高效空氣過濾器型號尺寸及其他參數(Standard specification )
|
型號
model |
外形尺寸
Outside dimensions
(mm) |
額定風量
Rated air flow
(m3/h) |
初阻力
Imitial resistance
(Pa) |
效率（比色法）
Efficiency
(%) |
容塵量
Dust capacity
(g) |
|
XN-4NGX-7.5J |
610×457×150 |
750 |
≤200 |
≥99.99 |
600 |
|
XN-4NGX-10J |
610×610×150 |
1000 |
≤200 |
≥99.99 |
350 |
|
XN-4NGX-15J |
610×457×292 |
1500 |
≤200 |
≥99.99 |
400 |
|
XN-4NGX-20J |
610×610×292 |
2000 |
≤200 |
≥99.99 |
600 |
*可要據用戶要求定制不同規格型號的過濾器
According to customer’s different size to produce. |
