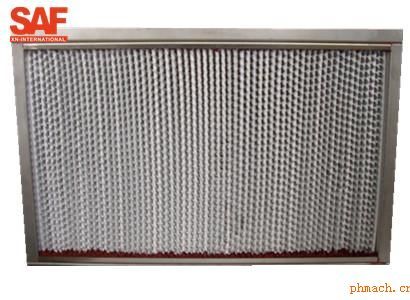

耐高溫中效空氣過濾器
High temperature resistant China effectively air filter
耐高溫中效空氣過濾器 特點Features
●阻力低、容塵量大
●耐高溫性能好
●主要用于超凈烘箱、高溫凈化設備、隧道爐的中級空氣過濾或一般空氣凈化級別的末端空氣過濾。
●Low resistance and large amount of dust
●High temperature resistant performance is good
耐高溫中效空氣過濾器 構成材料及運行條件Materials and operating conditions
●框材：不銹鋼外框 ●密封物：專用耐高溫密封膠
●External frane：Stainless steel frame ●Sealant：High temperature resistant sealant
●分隔物：鋁箔 ●濾料：玻纖濾紙
●Filter media：Aluminum foil ●Filter media：Glass fiber
●使用*高溫度、濕度：250~350℃、80%
●Use the highest temperature, humidity：250~350℃、80%
型號尺寸及其他參數(Standard specification)
|
型號
model |
外形尺寸
Outside dimensions
(mm) |
額定風量
Rated air flow
(m3/h) |
初阻力
Imitial resistance
(Pa) |
效率（比色法）
Efficiency
(%) |
容塵量
Dust capacity
(g) |
|
XN-NGXZ-15~22J1 |
484×484×220 |
1500~2200 |
≤30～68 |
F6～F9 |
600 |
|
XN-NGXZ-15～22J |
610×610×150 |
1500～2200 |
≤30～68 |
F6～F9 |
350 |
|
XN-NGXZ-26～40J |
630×630×220 |
2600～4000 |
≤30～68 |
F6~F9 |
400 |
|
XN-NGXZ-35~5200J |
610×610×292 |
3500~5200 |
≤30~68 |
F6～F9 |
600 |
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters |
