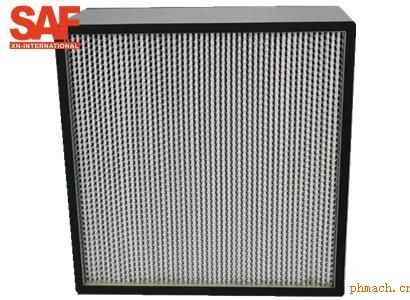

金屬框鋁隔板高效空氣過濾器
Metal frame aluminum clapboard efficient air filter
特點Features
●效率高、阻力低、風速均勻性好
●適用于各種局部?jī)艋O(shè)備和潔凈廠房的末端凈化
●High efficiency, low resistance, good uniformity winds
●Applicable to various local purification equipment and
clean workshop end purification
構成材料及運行條件
Materials and operating conditions
●框材：鋁合金外框、鍍鋅板外框、不銹鋼外框
●External frane：Aluminum alloy steel casing outside, the casing outside the box, stainless steel
●密封物：聚胺脂膠
●Sealant：Gel-glue
●分隔物：鋁箔
●Filter media：Aluminum foil
●密封條：醋酸乙酯
●Gasket：EVA
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用*高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
型號尺寸及其他參數
Standard specification
|
型號
model |
外形尺寸
Outside dimensions
(mm) |
額定風量
Rated air flow
(m3/h) |
初阻力
Imitial resistance
(Pa) |
效率（比色法）
Efficiency
(%) |
容塵量
Dust capacity
(g) |
|
XN-GX-2.5J |
305×305×150 |
250 |
≤200 |
≥99.99 |
200 |
|
XN-GX-4J |
320×320×220 |
400 |
≤200 |
≥99.99 |
350 |
|
XN-GX-6J |
484×484×150 |
600 |
≤200 |
≥99.99 |
400 |
|
XN-GX-10J1 |
484×484×220 |
1000 |
≤200 |
≥99.99 |
600 |
|
XN-GX-15J1 |
726×484×220 |
1500 |
≤200 |
≥99.99 |
900 |
|
XN-GX-20J1 |
968×484×220 |
2000 |
≤200 |
≥99.99 |
1200 |
|
XN-GX-10J2 |
610×610×150 |
1000 |
≤200 |
≥99.99 |
600 |
|
XN-GX-15J2 |
915×610×150 |
1500 |
≤200 |
≥99.99 |
900 |
|
XN-GX-20J2 |
1220×610×150 |
2000 |
≤200 |
≥99.99 |
1200 |
|
XN-GX-16J |
630×630×220 |
1600 |
≤200 |
≥99.99 |
900 |
|
XN-GX-24J |
945×630×220 |
2400 |
≤200 |
≥99.99 |
1400 |
|
XN-GX-32J |
1260×630×220 |
3200 |
≤200 |
≥99.99 |
1800 |
|
XN-GX-22J |
610×610×292 |
2200 |
≤200 |
≥99.99 |
1200 |
|
XN-GX-33J |
915×610×292 |
3300 |
≤200 |
≥99.99 |
1800 |
|
XN-GX-44J |
1220×610×292 |
4400 |
≤200 |
≥99.99 |
2400 |
*可要據用戶要求定制不同規格型號的過濾器
|
