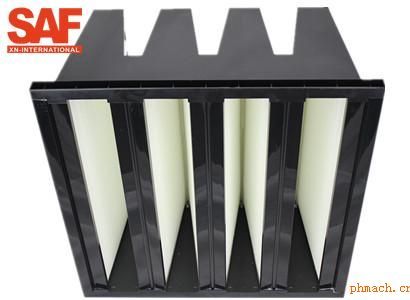

W型亞高效空氣過濾器
W type and efficient air filter
密褶式亞高效空氣過濾器特點Features
●使用壽命長
●大風量、阻力低、容塵量大
●適用于大風量空調通風系統的中級過濾
●Long service life
●Large volume, low resistance and large amount of dust
●For large volume air conditioning and ventilation
system of the intermediate filtration
構成材料及運行條件
Materials and operating conditions
●框材：塑膠外框 ●分隔物：熱熔膠
●External frane：Plastic box ●Space: glue
●密封物：聚胺脂膠 ●濾料：玻纖濾紙或聚酯纖維（PP）
●Sealant：Gel-glue ●Filter media：Glass fiber filter or polyester fiber (PP)
●使用*高溫度、濕度：80℃、80% ●Use the highest temperature, humidity：80℃、80%
密褶式亞高效空氣過濾器型號尺寸及其他參數（Standard specification）
|
型號
model |
外形尺寸
Outside dimensions
(mm) |
額定風量
Rated air flow
(m3/h) |
初阻力
Imitial resistance
(Pa) |
效率（比色法）
Efficiency
(%) |
濾料Filter materials |
|
XN-YGX2V-8J |
287×287×292 |
800 |
≤125 |
95(F8)/99(F9) |
聚酯纖維
Polyester fibers（PP）
玻璃纖維
Glass fiber |
|
XN-YGX3V-12J |
490×287×292 |
1200 |
≤125 |
95(F8)/99(F9) |
|
XN-YGX3V-20J |
490×490×292 |
2000 |
≤125 |
95(F8)/99(F9) |
|
XN-YGX3V-20J |
592×490×292 |
2000 |
≤125 |
95(F8)/99(F9) |
|
XN-YGX4V-22J |
592×490×292 |
2700 |
≤125 |
95(F8)/99(F9) |
|
XN-YGX4V-16J |
592×287×292 |
1600 |
≤125 |
95(F8)/99(F9) |
|
XN-YGX3V-22J |
592×592×292 |
2400 |
≤125 |
95(F8)/99(F9) |
|
XN-YGX4V-32J |
592×592×292 |
3200 |
≤125 |
95(F8)/99(F9) |
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters |
