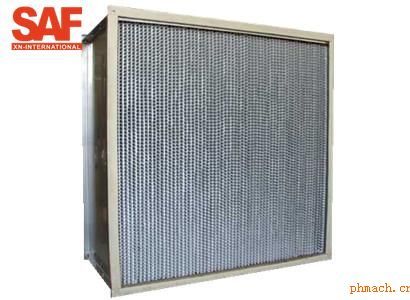

有隔板亞高效空氣過濾器
Have clapboard and efficient air filter
有隔板亞高效空氣過濾器特點Features
●效率高、阻力低、風速均勻性好
●適用于各種局部?jī)艋O(shè)備和潔凈廠房的中級空氣過濾或一般空氣凈化級別的末端凈化
●High efficiency, low resistance, good uniformity winds
●Applicable to various local purification equipment and clean workshop intermediate air filtration or general air purification level of end purification
有隔板亞高效空氣過濾器構成材料及運行條件
Materials and operating conditions
●框材：金屬外框或木框
●External frane：Outside the metal box or classic
●密封物：聚胺脂膠
●Sealant：Gel-glue
●分隔物：膠板紙或鋁箔
●Filter media：JiaoBanZhi or aluminum foil
●密封條：醋酸乙酯
●Gasket：EVA
●濾料：玻纖濾紙
●Filter media：Glass fiber
●使用*高溫度、濕度：80℃、80%
●Use the highest temperature, humidity：80℃、80%
有隔板亞高效空氣過濾器型號尺寸及其他參數
Standard specification
|
型號
model |
外形尺寸
Outside dimensions
(mm) |
額定風量
Rated air flow
(m3/h) |
初阻力
Imitial resistance
(Pa) |
效率（比色法）
Efficiency
(%) |
容塵量
Dust capacity
(g) |
|
XN-YGXY-4J |
305×305×150 |
400 |
≤110 |
≥95 |
200 |
|
XN-YGXY-700J |
320×320×220 |
700 |
≤110 |
≥95 |
350 |
|
XN-YGXY-10J |
484×484×150 |
1000 |
≤110 |
≥95 |
400 |
|
XN-YGXY-17J1 |
484×484×220 |
1700 |
≤110 |
≥95 |
600 |
|
XN-YGXY-25J1 |
726×484×220 |
2500 |
≤110 |
≥95 |
900 |
|
XN-YGXY-34J1 |
968×484×220 |
3400 |
≤110 |
≥95 |
1200 |
|
XN-YGXY-17J2 |
610×610×150 |
1700 |
≤110 |
≥95 |
600 |
|
XN-YGXY-25J2 |
915×610×150 |
2500 |
≤110 |
≥95 |
900 |
|
XN-YGXY-34J2 |
1220×610×150 |
3400 |
≤110 |
≥95 |
1200 |
|
XN-YGXY-26J |
630×630×220 |
2600 |
≤110 |
≥95 |
900 |
|
XN-YGXY-39J |
945×630×220 |
3900 |
≤110 |
≥95 |
1400 |
|
XN-YGXY-52J |
1260×630×220 |
5200 |
≤110 |
≥95 |
1800 |
|
XN-YGXY-35J |
610×610×292 |
3500 |
≤110 |
≥95 |
1200 |
|
XN-YGXY-52J |
915×610×292 |
5200 |
≤110 |
≥95 |
1800 |
|
XN-YGXY-70J |
1220×610×292 |
7000 |
≤110 |
≥95 |
2400 |
*可要據用戶要求定制不同規格型號的過濾器
According to user requirements to customize different specifications and types of filters |
