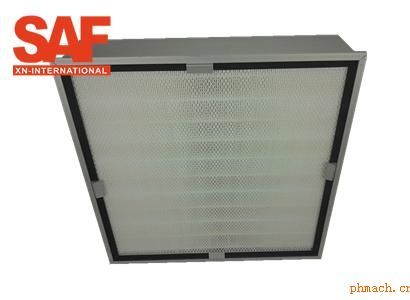

可更換式一體化高效送風口
Replaceable terminal ceiling HEPA module
可更換式一體化高效送風口特點features：
●采用鋁合金型材做靜壓箱，箱體內置無隔板高效空氣過濾器
●adopt extruded aluminum as static pressure casing,with inserted mini pleat HEPA filter.
●具有通風性能好、外觀美觀、安裝更換方便、重量輕、厚度薄、維護簡單
●good ventilation,nice appearance, well replacement ,light weight,thin depth ,easy maintenance
●采用專用濾網固定片，安裝更換高效過濾器不需要工具，快速便利
●adopt specific filter fixing holder,no tool for filter replacement ,fast and convenient.
●廣泛運用于手術室、實驗室、制藥、電子、食品衛生等潔凈要求高的工作環境
●largely used in operation room,labs,pharmaceuticals, electronics, food hygiene etc high clean level environment
●特別適用于受樓層高度限制或必須采用緊湊型設計的潔凈室建造，可大大節省空間
●specially good for limit floor height or compact design clean room construction
可更換式一體化高效送風口構成材料及運行條件（material and operating conditions ）
●框材：鋁合金專用型材外框
●frame: specific extruded aluminum
●接管頂板：鍍鋅板或冷板噴塑
●top plate: galvanized,coated steel
●風管接口：直徑250mm、300mm、350mm可選；邊長300mm正方形或長方形可選
●duct connection: diameter 250/300/350mm for choice ,side in 300mm square or rectangle
●高效過濾器：無隔板高效空氣過濾器
●HEPA filter: mini pleat HEPA filter
●保溫材料：PEF保溫棉
●thermal insulation material : PEF
●使用*高溫度、濕度：80℃、80%
●operation temperature,humidy:80℃、80%
型號尺寸及其他參數（Specifications）
|
型號model |
箱體尺寸casing size
（W×H×D）mm |
過濾器尺寸
Filter size
（W×H×D）mm |
風管接口尺寸
Duct size
(mm) |
額定風量
Air flow(m3/h) |
過濾面積
Fitering area
(㎡) |
容塵量
Dust capacity
（g） |
初阻力
Initial pressure（Pa） |
終阻力
Final pressure（Pa） |
過濾效率efficiency |
|
KFK-2J |
358×358×150 |
320×320×69 |
Ø250
200×200 |
200 |
3.6 |
200 |
180 |
400 |
H10
H11
H12
H13
H14
U15 |
|
KFK-4J |
522×522×150 |
484×484×69 |
Ø250
200×250 |
400 |
7.2 |
400 |
180 |
400 |
|
KFK-6J |
608×608×150 |
570×570×69 |
Ø300
250×250 |
600 |
10.8 |
600 |
180 |
400 |
|
KFK-8J |
648×648×150 |
610×610×69 |
Ø300
300×300 |
800 |
14.4 |
800 |
180 |
400 |
|
KFK-12J1 |
953×648×150 |
915×610×69 |
Ø300
300×400 |
1200 |
21.6 |
1200 |
180 |
400 |
|
KFK-12J2 |
1208×608×150 |
1170×570×69 |
Ø350
300×400 |
1200 |
21.6 |
1200 |
180 |
400 |
|
KFK-16J |
1258×648×150 |
1220×610×69 |
Ø350
300×500 |
1600 |
28.8 |
1600 |
180 |
400 |
*可要據用戶要求定制不同規格型號的過濾器
According to customer’s different size to produce. |
